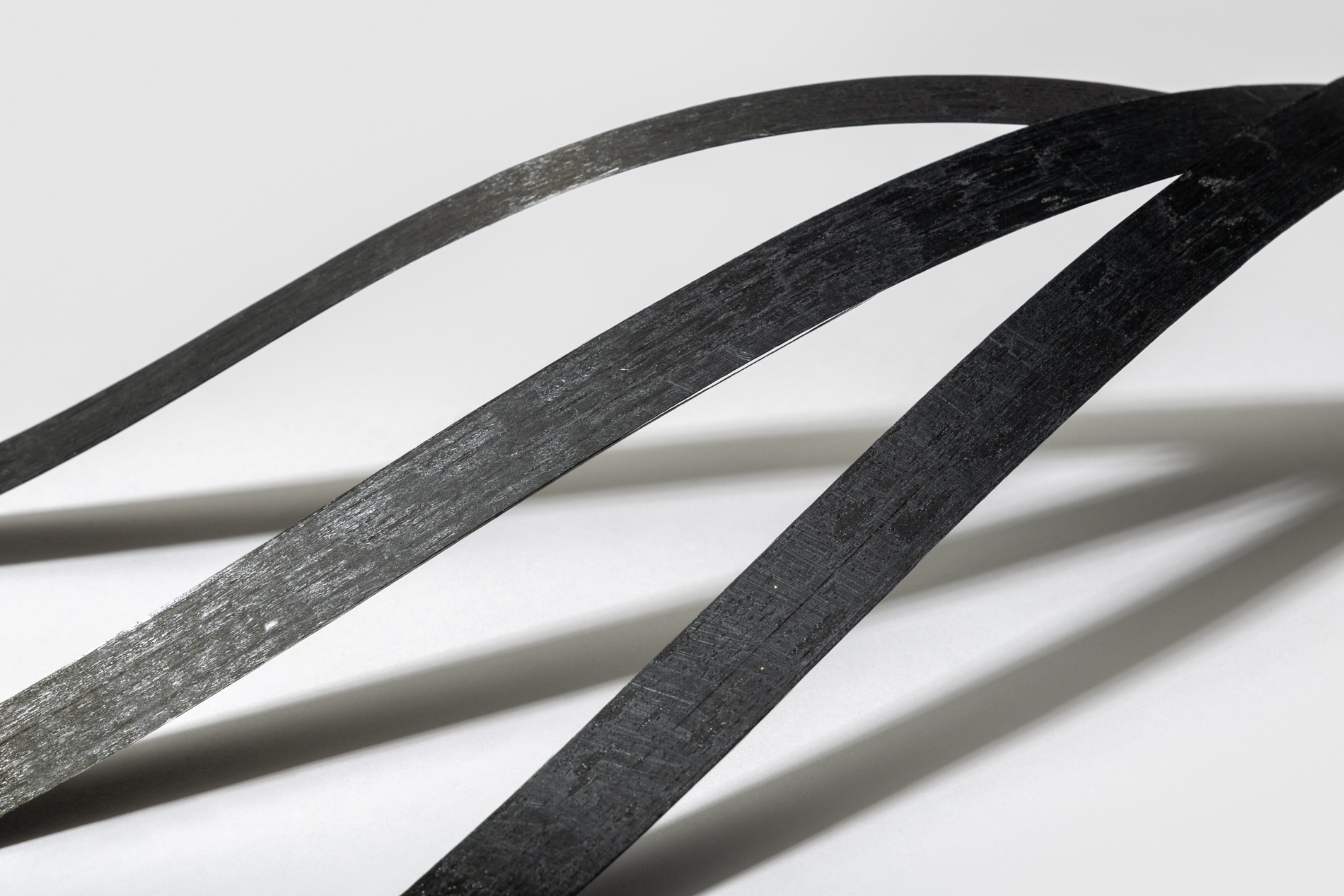

FairPatch & FairStrips
Cured, custom-shaped recycled CFRP elements for structural applications requiring continuous fiber or a specific shape to enable molding
Quick facts
Metric
Value
Form
Cured composite chip
Dimensions
Custom
Resin compatibility
Thermosets & Thermoplastics
Integration
Manual or robotic layup possible off-site implementation
Application fit
Complex shapes, continuous fiber reinforcement
Certification
Full specs + Certificate of Conformity
What are FairPatch & FairStrips?
FairPatch and FairStrips are specialized forms of Fairmat Chips. They are cured, single-ply composite elements with fully customizable sizes and shapes. They feature continuous fibers and are ideal for applications that are either require a single ply or have well defined load paths.
They are designed for manual or robotic assembly, either directly into a tool or within another component.
Like the standard ones, these custom chips can be laminated with thermoset (wet or film), thermoplastic resins or combined with other virgin materials.
These can become a perfect solution for products that have very specific load cases or complex shapes.
Their individual quality is assured through Fairmat's traceability systems and 100% in-process quality inspection, and they are delivered with full specifications and a Certificate of Conformity.
Technical Specifications
Dimensional & Material Properties
Property
Value
Fiber Orientation
Woven or Unidirectional
Dimensions
Custom
Thickness
0.12 - 0.34mm
Form Factor
Per customer design
Resin Compatibility
Thermosets & most Thermoplastics
100% in-process quality inspection
Delivered with Certificate of Conformity
Traceability embedded across manufacturing
Why choose this product
Application-specific
Integration flexibility
Resin agnostic
Certified consistency
High performance
Applications and format
Downloads & Support
Frequently Asked Questions
Can I order these in non-standard geometries?
Yes — we can produce curved patches, long strips, or grid-aligned clusters based on your CAD input or tooling constraints. Our engineering team can help tailor a perfect chip for your application
Are these also cured like standard Fairmat Chips?
Yes, the curing process ensures dimensionally stable, process-ready elements that are compatible with downstream lamination.
What industries use FairPatch & FairStrips?
They’re ideal for structural inserts in mobility, sport, industrial tooling, or high-performance goods where shape complexity or where we only have a very limited number of layers to work with. More specifically we have found a great fit in racquet sports, bikes, skis and running shoe insoles.
