FairPly
FairPly is a single composite layer for molding
Made from second-generation carbon fiber
and engineered for performance, sustainability
and seamless integration across any sector
Key Benefits
HIGH PERFORMANCE
Aerospace-origin carbon fiber delivering unrivaled strength-to-weight and durability
SUSTAINABILITY
Made of up to 95% of recycled material, radically reducing environmental footprint
SEAMLESS INTEGRATION
Easily integrated into any manufacturing process and compatible with most materials and resins
NO GREEN PREMIUM
Pricing at market parity of the materials it replaces, removing the financial burden of decarbonization
ADVANCED FORMABILITY
Seamless molding into complex geometries without fiber tearing or wrinkling
DESIGN FLEXIBILITY
Bespoke ply configuration and cutting pattern that meets custom mechanical specifications
.png)
VIBRATION DAMPENING
Optimized energy dissipation thanks to its discontinuous fiber structure
.png)
STREAMLINED LOGISTICS
Ready to use and stable at room temperature, removing the need for specialized storage
Product Specifications
FairPly Characteristics
PRODUCT VARIANT
FairPly 200
FairPly 300
FairPly 400
SUPPORT FILM
GFNW / GFW
CHIP CONDENSED THICKNESS (MM)2
0.12
0.19
0.25
PLY LENGTH (MM)
200/800
Customized sizes on demand
PLY WIDTH (MM)
200/800
Customized sizes on demand
DENSITY (G/CM3)
1.6
TOTAL AREAL
WEIGHT (GSM)2
250/245
345/340
445/440
(1) EFFECTIVE THICKNESS ACCORDING TO THE MASS, DENSITY AND DIMENSIONS OF THE MATERIAL
(2) TOTAL AREA WEIGHT = RECYCLED CFRP CHIP WEIGHT + SUPPORT FILM WEIGHT
FairPly Layouts & Layups
FairPly offers customization of its ply architecture, cutting pattern and layup design, tailoring the material to specific performance needs
ARCHITECTURE
UD GRID
UD BRICK WALL
UD STAIRCASE
PATTERN
0ª/90º
45º/-45º
30º/-30º
LAYUP
CUSTOM LAYUP EXAMPLE
FairPly Mechanical Properties
LAYUP
0/0/0/0/0
TENSILE 0º
(ISO 527)
FLEXURAL 0º
(ISO 14125)
ILSS 0º
(ASTM D2344)
COMPRESSION 0º
(ISO 14126)
MODULUS (GPa)
96
81
-
105
ULTIMATE STRENGTH (MPa)
580
800
50
636
LAYUP 0/90/0/90/0
TENSILE 0º
(ISO 527)
FLEXURAL 0º
(ISO 14125)
ILSS 0º
(ASTM D2344)
COMPRESSION 0º
(ISO 14126)
MODULUS (GPa)
60
65
-
-
ULTIMATE STRENGTH (MPa)
350
500
-
-
NOTE: DATA GENERATED FROM INTERNAL TESTING ON PLATES OF 2MM THICKNESS, 1.4 G/CC, 65% CHIPS VOL. AVERAGE VALUES PROVIDED
FAIRMAT Chips Characteristics
FIBER ORIENTATION
UD 200
UD 300
UD 400
LENGTH (MM)
95
WIDTH (MM)
42
CHIP CONDENSED THICKNESS (MM)1
0.12
0.19
0.25
TOTAL AREAL
WEIGHT (GSM)2
210
305
405
(1) EFFECTIVE THICKNESS ACCORDING TO THE MASS, DENSITY AND DIMENSIONS OF THE MATERIAL
(2) TOTAL AREA WEIGHT = RECYCLED CFRP CHIP WEIGHT + CURED RESIN WEIGHT
TYPE3
Glass Fiber Non-Woven (GFNW)
Glass Fiber Woven
(GFW)
CONDENSED THICKNESS (MM)
40
35
MEASURED THICKNESS (MM)
0.15
0.05
TOTAL AREAL
WEIGHT (GSM)4
0.1
0.05
(3) A PURE CARBON SUPPORT (NO SUPPORT FILM) IS ALSO AVAILABLE. PLEASE, CONTACT US FOR MORE INFORMATION
(4) TOTAL AREA WEIGHT = SUPPORT FILM WEIGHT + HOT MELT ADHESIVE WEB WEIGHT

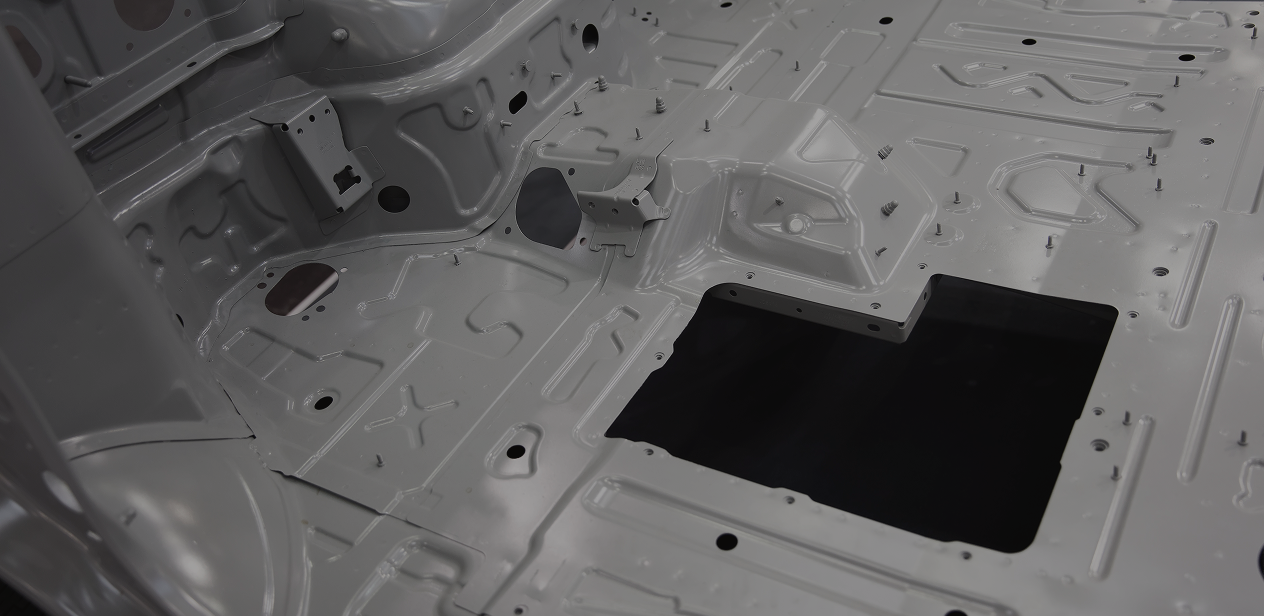

Product APPLICATIONS
Frequently Asked Questions
Since the chips are cured, will I be able to mold a curved or complex shape?
FAIRMAT materials can be shaped into practically any form. With proper design, even sharp radius features can be molded perfectly. Our engineers can support your design phase.
Will the material stick to itself?
The material requires lamination using new resin or bonding with virgin materials that adhere to it. Wet processes, resin films or hybridization with virgin materials are possible
How does it get to my facility?
FairPly is shipped as flat-packed squares (typically 800 x 800 mm) or in continuous roll format. It does not require refrigeration. Bulk shipments and local warehousing available globally.
