FairPatch

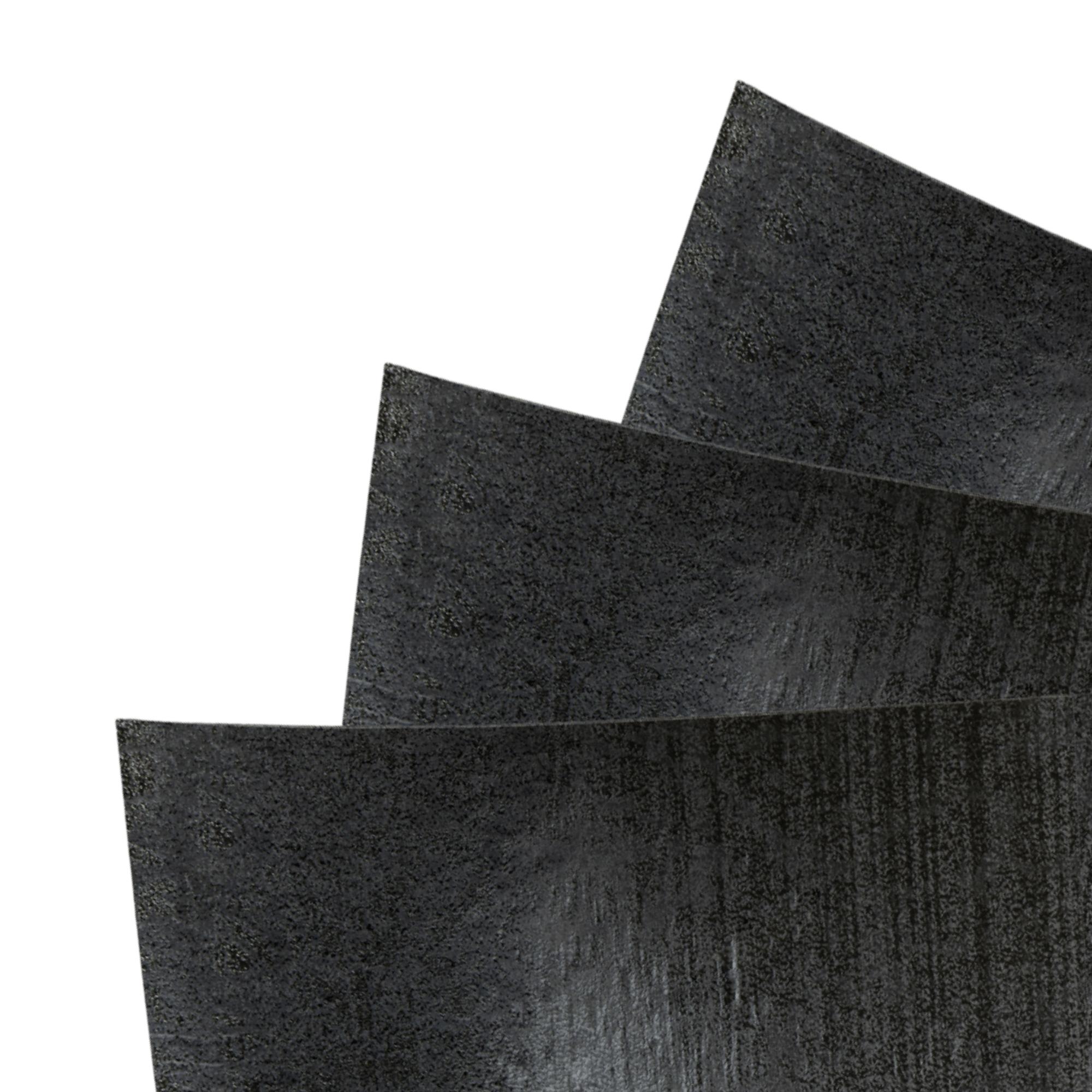

FairPatch is a single layer composite layer ready for molding
Made from UD or BD second-generation carbon fiber
and engineered for performance, sustainability
and versatility across any sector.
Key Benefits
HIGH PERFORMANCE
Aerospace-origin carbon fiber delivering unrivaled strength-to-weight and durability
SUSTAINABILITY
Made of up to 95% of recycled material, radically reducing environmental footprint
SEAMLESS INTEGRATION
Easily integrated into any manufacturing process and compatible with most materials and resins
NO GREEN PREMIUM
Pricing at market parity of the materials it replaces, removing the financial burden of decarbonization
.png)
.png)
SUPERIOR STIFFNESS
Augmented strength thanks to the continuous fiber structure of the material
DESIGN FLEXIBILITY
Bespoke ply thickness and cutting pattern that meets custom mechanical specifications
.png)
STREAMLINED LOGISTICS
Ready to use and stable at room temperature, removing the need for specialized storage
Product Specifications

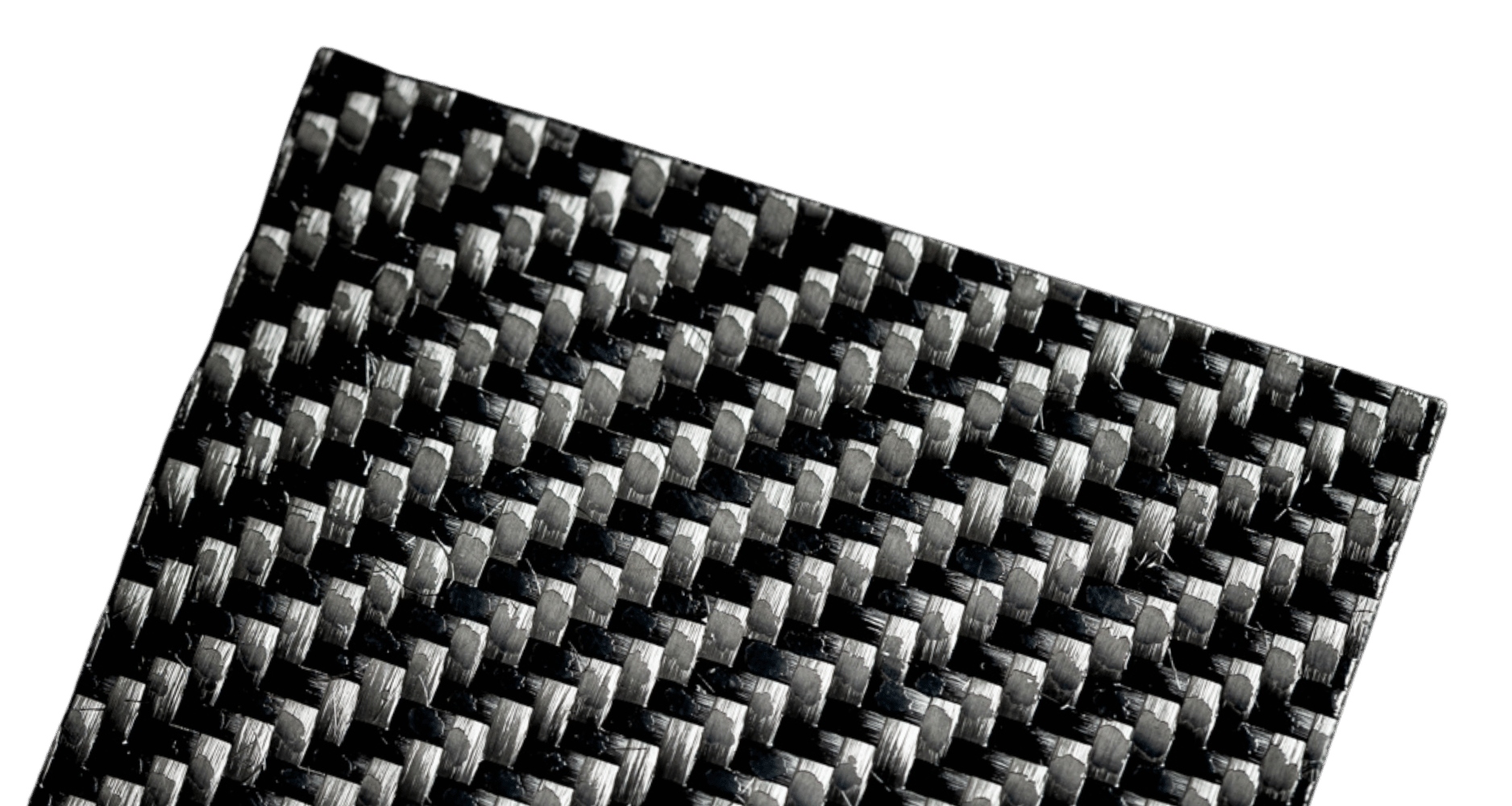

Woven FairPatch Characteristics (BD)
CARBON
FIBER WEAVE
BD
Plain
BD
Twill
BD
Satin
LENGTH (MM)1
100 - 1 000
WIDTH (MM)1
20 - 600
CONDENSED THICKNESS (MM)2
0.125
0.235
0.305
0.260
0.310
0.360
FIBER AERIAL WEIGHT (GSM)
195
215
265
245
295
335
TOTAL AREAL
WEIGHT (GSM)3
320
355
440
410
490
560
(1) FOR BIGGER DIMENSIONS, PLEASE, CONTACT OUR SALES SUPPORT
(2) EFFECTIVE THICKNESS ACCORDING TO THE MASS, DENSITY AND DIMENSIONS OF THE MATERIAL
(3) TOTAL AREA WEIGHT = RECYCLED CFRP LAYER WEIGHT + CURED RESIN WEIGHT
Mechanical Properties (LAYUP 0/0/0/0/0)4
TYPE
SP
HP
0º TENSILE MODULUS
(GPa, ISO 527)
36
40
0º TENSILE ULTIMATE
STRENGTH (MPa, ISO 527)
420
609
(4) DATA GENERATED FROM INTERNAL TESTING ON PLATES OF 1.4 G/CC, 65% FAIRPATCH VOL. AVERAGE VALUES PROVIDED
(5) OTHER TYPES AVAILABLE. PLEASE, CONTACT US FOR MORE INFORMATION

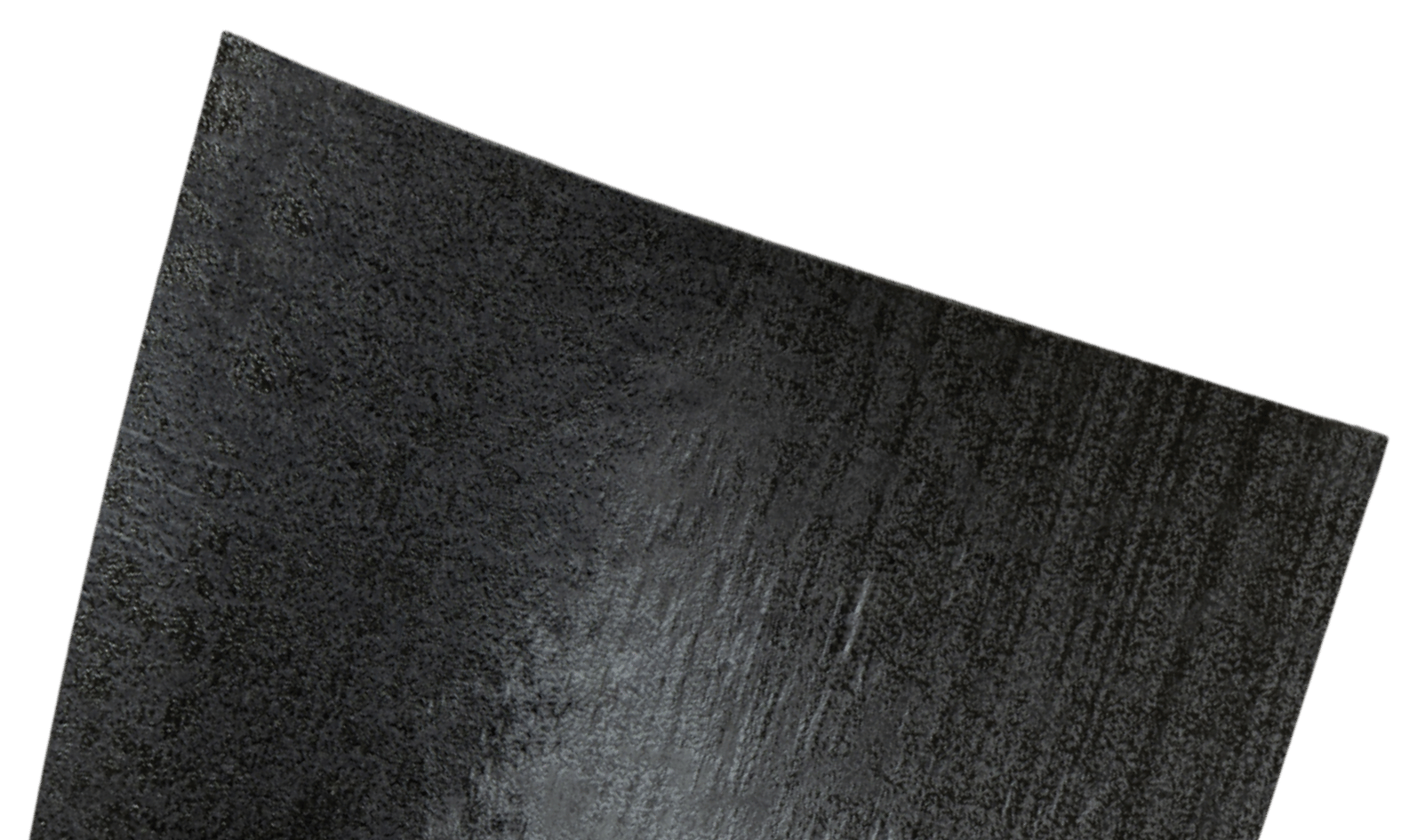

Unidirectional FairPatch Characteristics (UD)
CARBON
FIBER WEAVE
UD 200
UD 300
UD 400
LENGTH (MM)1
100 - 1 000
WIDTH (MM)1
40 - 300
CONDENSED THICKNESS (MM)2
0.12
0.19
0.25
FIBER AERIAL WEIGHT (GSM)
125
185
245
TOTAL AREAL
WEIGHT (GSM)3
210
305
405
(1) FOR BIGGER DIMENSIONS, PLEASE, CONTACT OUR SALES SUPPORT
(2) EFFECTIVE THICKNESS ACCORDING TO THE MASS, DENSITY AND DIMENSIONS OF THE MATERIAL
(3) TOTAL AREA WEIGHT = RECYCLED CFRP LAYER WEIGHT + CURED RESIN WEIGHT
Mechanical Properties (LAYUP 0/0/0/0/0)4
TYPE
SP
HP
0º TENSILE MODULUS
(GPa, ISO 527)
83
109
0º TENSILE ULTIMATE
STRENGTH (MPa, ISO 527)
1 463
2 061
(4) DATA GENERATED FROM INTERNAL TESTING ON PLATES OF 1.4 G/CC, 65% FAIRPATCH VOL. AVERAGE VALUES PROVIDED
(5) OTHER TYPES AVAILABLE. PLEASE, CONTACT US FOR MORE INFORMATION
u.png)
Support Film Characteristics
TYPE1
Glass Fiber Non-Woven (GFNW)
Glass Fiber Woven (GFW)
CONDENSED THICKNESS (MM)2
40
35
MEASURED THICKNESS (MM)
0.15
0.05
TOTAL AREAL
WEIGHT (GSM)3
0.1
0.05
(1) A PURE CARBON SUPPORT (NO SUPPORT FILM) IS ALSO AVAILABLE. PLEASE, CONTACT US FOR MORE INFORMATION
(2) EFFECTIVE THICKNESS ACCORDING TO THE MASS, DENSITY AND DIMENSIONS OF THE MATERIAL
(3) TOTAL AREA WEIGHT = SUPPORT FILM WEIGHT + HOT MELT ADHESIVE WEB WEIGHT
Product APPLICATIONS
Frequently Asked Questions
Are these also cured like standard FAIRMAT Chips?
Yes, the curing process ensures dimensionally stable, process-ready elements that are compatible with downstream lamination.
