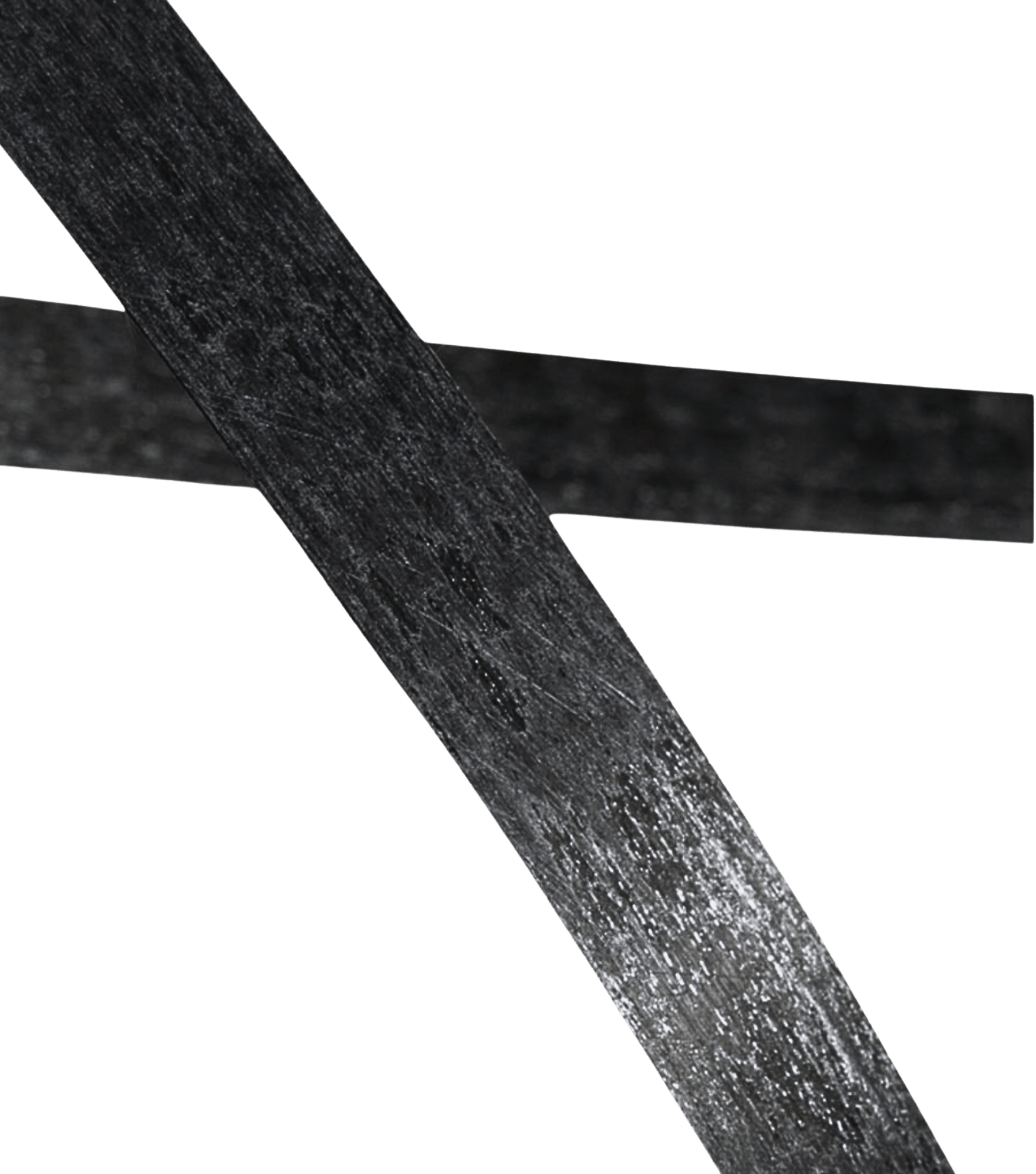

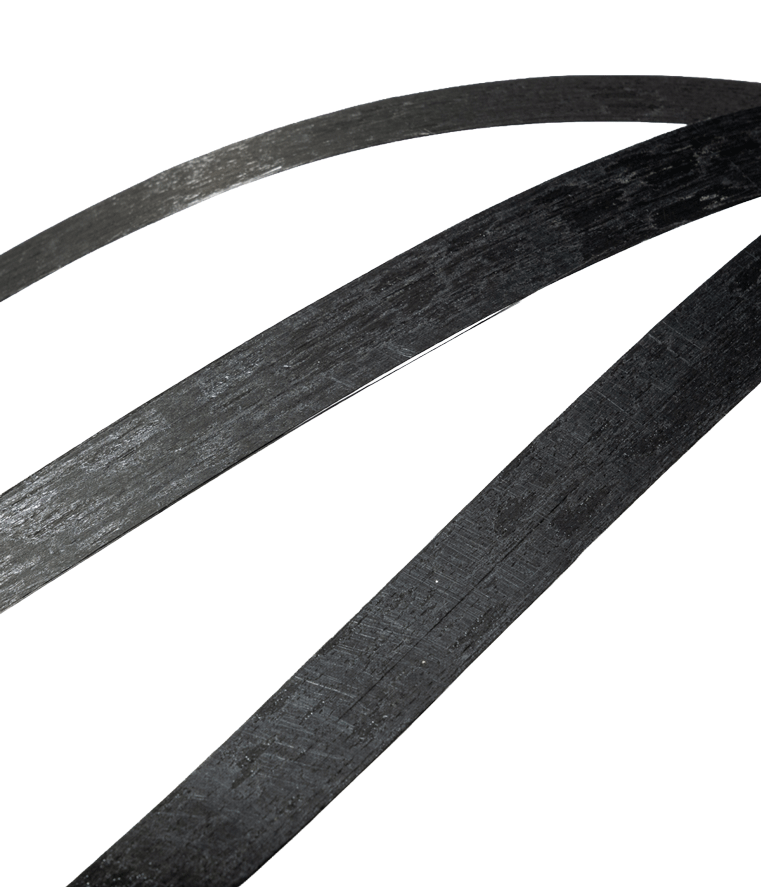

FairStrips
FairStrips are single layer strips ready for molding
Made from unidirectional second-generation carbon fiber
and engineered for targeted reinforcement, sustainability
and seamless integration across any sector
Key Benefits
HIGH PERFORMANCE
Aerospace-origin carbon fiber delivering unrivaled strength-to-weight and durability
SUSTAINABILITY
Made of up to 95% of recycled material, radically reducing environmental footprint
SEAMLESS INTEGRATION
Easily integrated into any manufacturing process and compatible with most materials and resins
NO GREEN PREMIUM
Pricing at market parity of the materials it replaces, removing the financial burden of decarbonization
TARGETED REINFORCEMENT
Augmented local stiffness thanks to the continuous fiber structure of the material
ADVANCED FORMABILITY

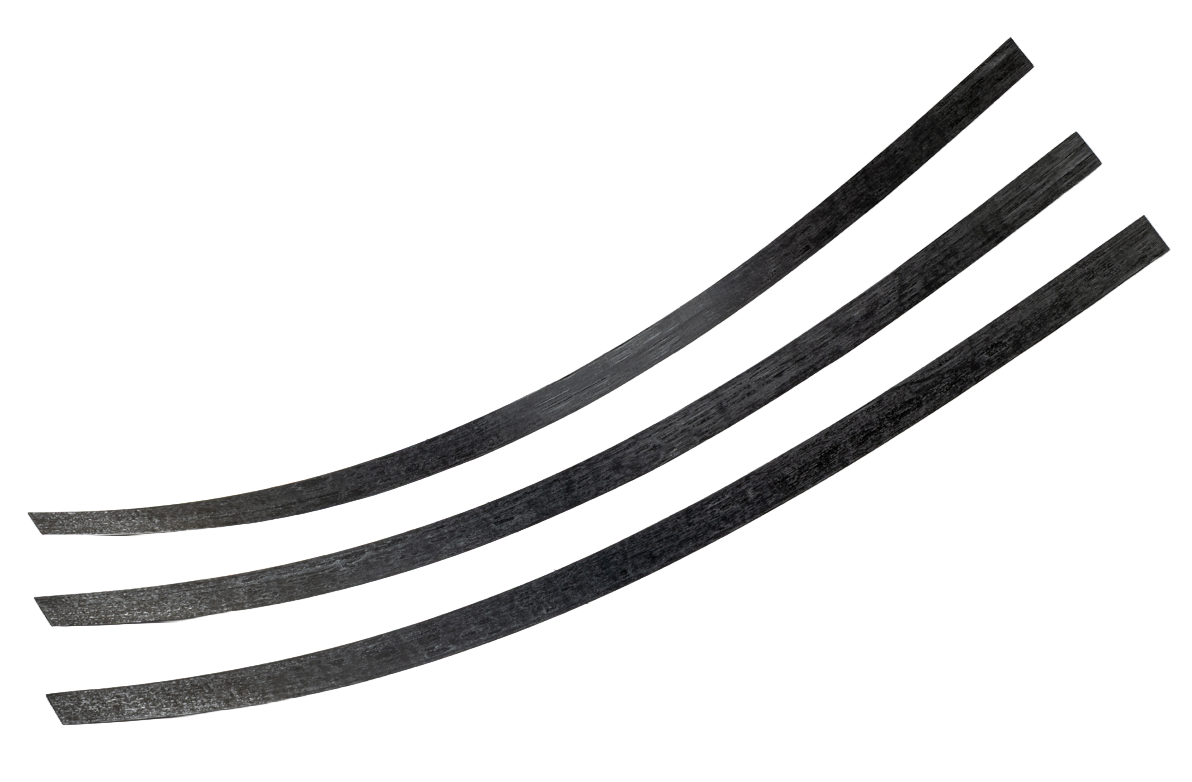

Seamless molding into curved profiles without fiber tearing or wrinkling
DESIGN FLEXIBILITY
Bespoke strip thickness and cutting pattern that meets custom mechanical specifications
.png)
STREAMLINED LOGISTICS
Ready to use and stable at room temperature, removing the need for specialized storage
Product Specifications
FairStrips Characteristics (UD)
CARBON
FIBER WEAVE
UD 200
UD 300
UD 400
LENGTH (MM)1
100 - 1 000
WIDTH (MM)1
20 - 40
CONDENSED THICKNESS (MM)2
0.125
0.190
0.250
FIBER AERIAL WEIGHT (GSM)
125
185
245
TOTAL AREAL
WEIGHT (GSM)3
210
305
405
(1) FOR BIGGER DIMENSIONS, PLEASE, CONTACT OUR SALES SUPPORT
(2) EFFECTIVE THICKNESS ACCORDING TO THE MASS, DENSITY AND DIMENSIONS OF THE MATERIAL
(3) TOTAL AREA WEIGHT = RECYCLED CFRP LAYER WEIGHT + CURED RESIN WEIGHT
Mechanical Properties (UD, LAYUP 0/0/0/0/0)4
TYPE5
SP
HP
0º TENSILE MODULUS
(GPa, ISO 527)
83
109
0º TENSILE ULTIMATE
STRENGTH (MPa, ISO 527)
1 463
2 061
(4) DATA GENERATED FROM INTERNAL TESTING ON PLATES OF 1.4 G/CC, 65% FAIRPATCH VOL. AVERAGE VALUES PROVIDED
(5) OTHER TYPES AVAILABLE. PLEASE, CONTACT US FOR MORE INFORMATION
Support Film Characteristics
TYPE1
Glass Fiber Non-Woven (GFNW)
Glass Fiber Woven
(GFW)
CONDENSED THICKNESS (MM)2
40
35
MEASURED THICKNESS (MM)
0.15
0.05
TOTAL AREAL
WEIGHT (GSM)3
0.1
0.05
(1) A PURE CARBON SUPPORT (NO SUPPORT FILM) IS ALSO AVAILABLE. PLEASE, CONTACT US FOR MORE INFORMATION
(2) EFFECTIVE THICKNESS ACCORDING TO THE MASS, DENSITY AND DIMENSIONS OF THE MATERIAL
(3) TOTAL AREA WEIGHT = SUPPORT FILM WEIGHT + HOT MELT ADHESIVE WEB WEIGHT
Product APPLICATIONS
Frequently Asked Questions
Are these also cured like standard FAIRMAT Chips?
Yes, the curing process ensures dimensionally stable, process-ready elements that are compatible with downstream lamination.
