FairPlates
Recycled carbon fiber plates and parts — machined, molded, or integrated as-is.
Quick facts
Metric
Value
Form
Plate or custom-shaped part
Dimensions
Up to 2 x 3 meters
Thickness Range
0.5 mm to block form
Matrix Options
Thermoset or Thermoplastic
Surface Finish
Peelply, gel coat, Class A, textured
Use Cases
Feedstock, co-molding, final part
What Are FairPlates?

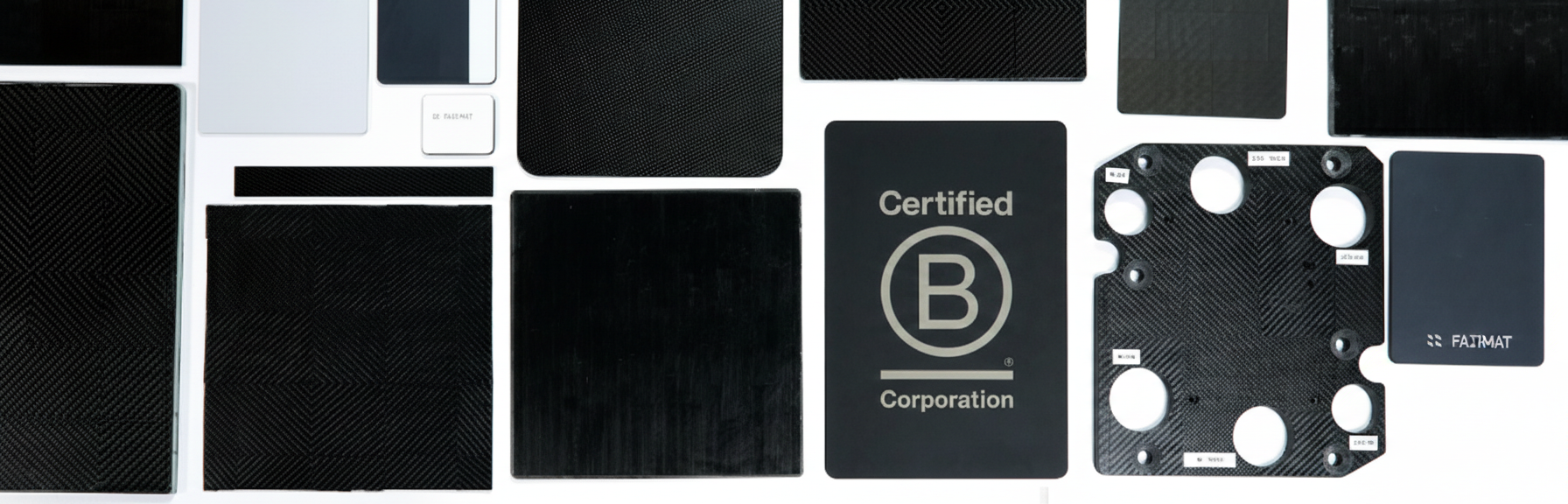

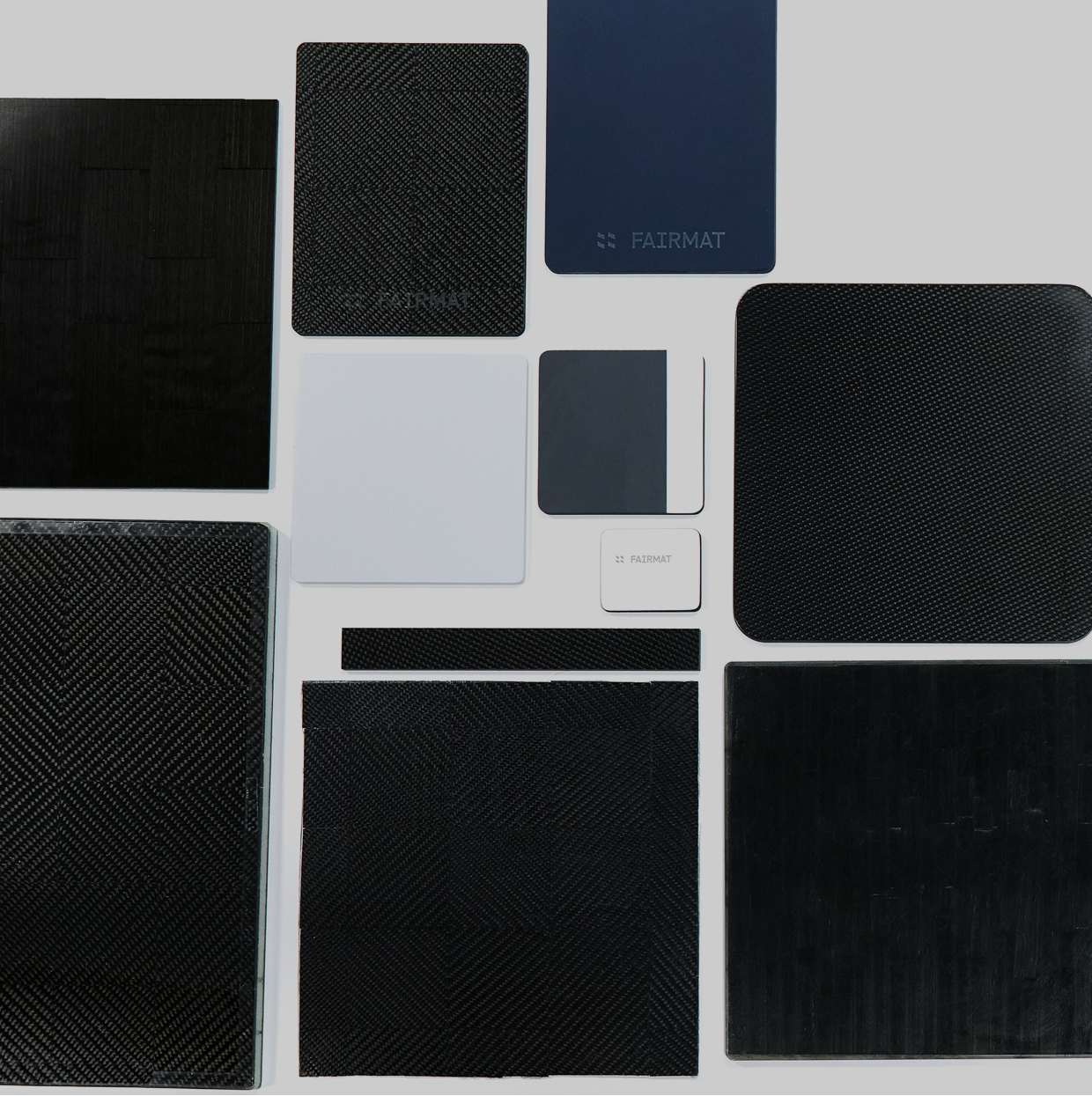

FairPlates are fully consolidated, multi-layer laminates delivered by Fairmat, precisely designed and cut to meet customer requirements. Available as plates or custom parts, they offer fully customizable mechanical properties.
Dimensions can be up to 2 x 3 meters, with no thickness limitations, from 0.5mm to block form.
They can feature customized aesthetic surface finishes such as peelply, gel coat, or even Class A. These laminates serve as high-performance subcomponents for assembly or co-molding, feedstock for secondary processing (machining, reforming), or as finished components.
They are available with thermoset matrices and thermoplastic matrices.

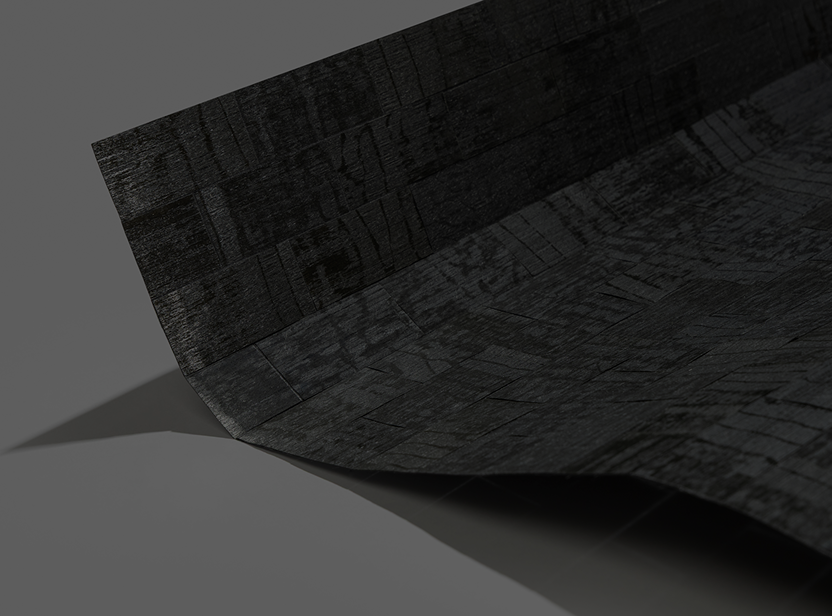

Organo Sheets
Consolidated laminates that combine the use of Fairmat Chips laminated with thermoplastic films represent a new frontier in the world of composites materials. The cost-effective solution can easily be trimmed and thermoformed to create 2D and 2.5D profiles in seconds. The resulting part exhibits the mechanical performance of thermosets composites with the ductility and durability of thermoplastics
Technical Specifications
Dimensional & Material Properties
Property
Value
Dimensions
Up to 2 x 3 meters
Thickness
From 0.5 mm to block form
Matrix Options
Thermoset and Thermoplastic
Surface Finish
Peelply, gel coat, texture, Class A available
Mechanical tuning
Fully customizable per application
Processing Options
CNC, co-molding, thermoforming (Organo)
Why choose this product
End-product ready
Customizable geometry
Broad compatibility
Premium finish options
Organo Sheet format
Applications and format
Downloads & Support
Frequently Asked Questions
Are these materials machinable?
Yes. Molded Laminates can be milled, drilled, or CNC-machined using standard composite tool paths. We provide finishing guidance for optimal edge quality.
Can I use Organo Sheets for 2.5D formed parts?
Yes. Thermoplastic-based Organo Sheets are ideal for hot forming into 2D or shallow 3D profiles in seconds. They’re ideal for mobility and packaging systems.
Do I need to specify the resin system?
Fairmat engineers can help you select the right thermoset or thermoplastic resin depending on performance, durability, and processing needs.
Can I use them in visible applications?
Yes. Class A and custom texture surfaces are available for visible industrial design applications (panels, housings, casings, etc.)
